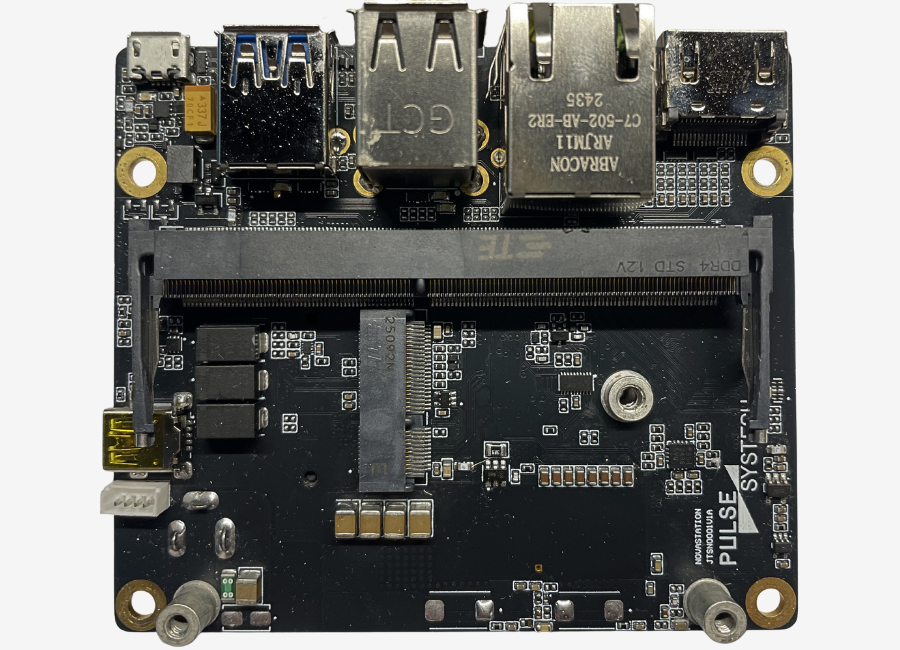

Novastation – NVIDIA® Jetson Orin Nano Super / Nano / TX2 NX / Xavier NX Carrier Board

Estimated Shipping: 1-2 Day

Modular Architecture and Scalability

Fully compatible with NVIDIA Jetson Nano, TX2 NX, Xavier NX, and Orin Nano Super modules, Novastation offers a scalable AI development environment; its modular design allows users to swap processors based on project requirements while maintaining the same hardware platform.

Standardized Connectivity and Ease of Use

Featuring standard ports for direct use without proprietary cable sets, the platform minimizes deployment costs and complexity, while ensuring a long-term, secure connection architecture through locked industrial interfaces and optional ruggedized cable sets.

Versatile Vision and Industrial Connectivity

Providing low-latency visual processing via dual-channel MIPI-CSI camera interfaces, the system supports industrial protocols like RS232 and CAN-BUS alongside standard HDMI, USB, and Ethernet ports. This extensive interface array, combined with onboard NVMe SSD and PCIe-based wireless module support, ensures high-speed processing and transmission of complex sensor data.

Module Compatibility	NVIDIA Jetson Nano NVIDIA Jetson TX2 NX NVIDIA Jetson Xavier NX NVIDIA Jetson Orin Nano Super
Dimensions	85.5mm x 73.5mm x 29.2mm
Weight	82 gr
Supply Voltage	9V-32V
Ethernet	1 x 10/100/1000BASE -T RJ45
Graphics Interface	1 x HDMI 2.0 (max resolution 3840 x 2160 30 fps)
USB	2 x USB2.0 Tip A 1 x USB 2.0 Micro -B (Recovery) 1 x USB 3.0 Tip A
*Camera	1 x 4L MIPI -CSI2, 1 x 2L MIPI -CSI2
PCIe	1 x M.2 E Key WiFi/Bluetooth 2230, 1 x M.2 M Key NVMe SSD 2242
Debug	1 x USB CH340 Debug
*UART	1 x RS232
*CAN	1 x Non-isolated CAN 2.0 (Jetson Nano not included)
I2C	1 x I2C
SPI	1 X SPI
RTC Battery	2-Pin RTC Battery Connector
External Voltage Output	1 x 12V/1A 1 x 3V3/500mA 1 x 5V0/500mA
GPIO	1 x Force Recovery, 2 x GPIO
Operating Systems	Ubuntu Linux 18.04 / 20.04 / 22.04
JetPack Support	JetPack 4.x / 5.x / 6.x
Operating Temperature	-40 °C…+85 °C

* M a n u f a c t u r e c u s t o m o p t i o n p l e a s e c o n t a c t u s

More Information

Novastation Carrier is a versatile and powerful carrier board designed for Jetson Nano, TX2 NX, Xavier NX and Orin Nano Super modules. It features wide input voltage 9V-32V with power protection, Gigabit Ethernet, USB 3.0 & 2.0 ports, MIPI-CSI2 camera interfaces, PCIe expansion, and HDMI 2.0 display output. With RS232, CAN, I2C, SPI, and Debug USB communication options, it ensures seamless integration for edge AI, robotics, and vision applications. Designed for industrial environments -40°C to +85°C, Novastation delivers efficient performance with robust connectivity.

Spec sheet

USER MANUEL

Please contact us for customization requests.

Should you require a price quotation, please do not hesitate to contact us. For more detailed information about the technical documentation and user manual of the product, please contact us.
