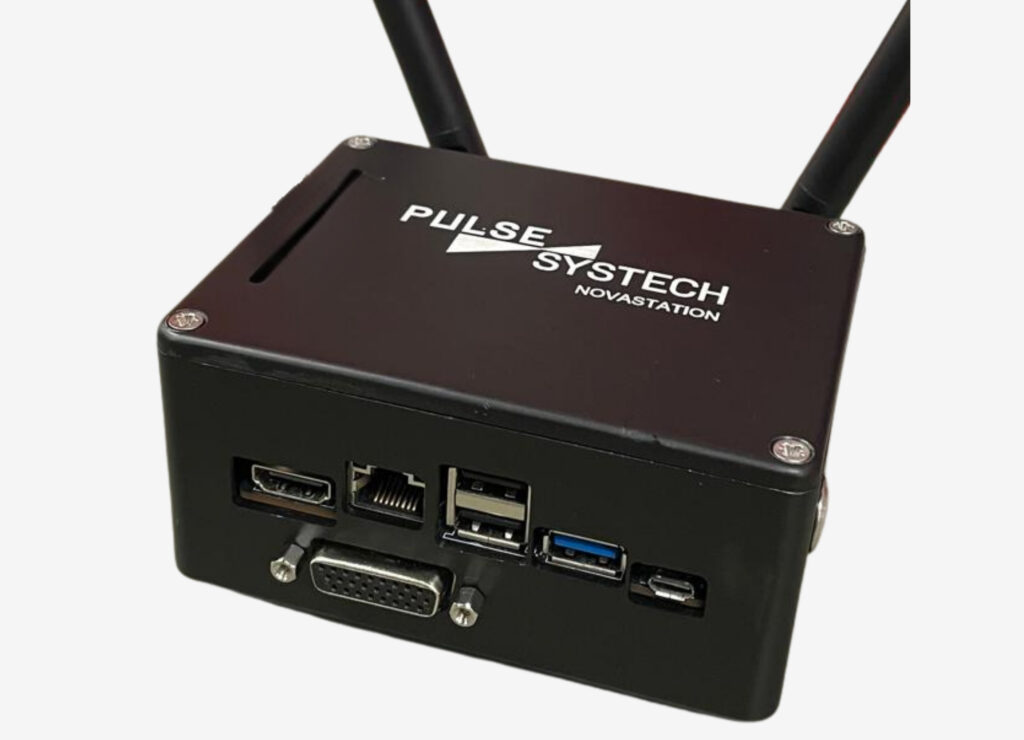

NOVABOX – NVIDIA® Jetson Orin™ Nano Industrial Box

Reliable Industrial Architecture

By protecting critical components against dust, impact, and electrical interference through its fanless design and rugged enclosure, the system ensures uninterrupted operational stability in extreme temperatures ranging from -25°C to +70°C.

Flexible Connectivity and Power Integration

Offering plug-and-play usability via standard ports without the need for custom cable sets, the system provides secure and cost-effective integration into diverse platforms through its onboard NVMe SSD, WiFi/Bluetooth modules, and wide 9V-32V power input support.

Custom Deployment and BSP Integration

Enables the hardware to fully align with specific application requirements through project-based configuration of existing user ports, tailored Linux driver solutions, and customized Board Support Package (BSP) integration.

Module Compatibility	NVIDIA Jetson Orin Nano Super
*Memory	4 GB 64-bit LPDDR5 / 8 GB 128 -bit LPDDR5
Dimensions	116.60 x 102.85 x 54.70 mm
Supply Voltage	9V-32V
Power Button	Switch and Power LED
Display Interface	1 x HDMI 2.0 (Max resolution 3840×2160)
Ethernet	1 x 10/100/1000 BASE -T RJ45
USB	2 x USB2.0 Tip A 1 x USB 2.0 Micro -B (Recovery) 1 x USB 3.0 Tip A
*Camera	1 x 4L MIPI -CSI2 (22P 0.5mm FPC Cable) 1 x 2L MIPI -CSI2 (15P 1mm FPC Cable)
PCIe	1 x WiFi 2.4 GHz – 5.0 GHz / Bluetooth 1 x NVMe 256 GB SSD
Debug	UART TTL
*UART	1 x RS232
CAN	1 x Non-isolated CAN 2.0
I2C	1 x I2C
SPI	1 X SPI
RTC Battery	Internal RTC Battery
External Voltage Output	1 x 3V3/500mA 1 x 5V0/500mA 1 x 12V0/1000mA
GPIO	2 x GPIO
Operating Systems	Ubuntu Linux 20.04 / 22.04
JetPack Support	JetPack 5.x / 6.x
Operating Temperature	-25 °C…+70 °C

* M a n u f a c t u r e c u s t o m o p t i o n p l e a s e c o n t a c t u s

More Information

Built on the NVIDIA Jetson Orin Nano architecture, Novabox is a compact edge solution delivering up to 67 TOPS of AI performance in extreme conditions ranging from -25°C to +70°C. Its rugged enclosure and fanless design protect critical components against physical impact, dust ingress, and electrical interference, ensuring operational continuity in harsh environments.
The system integrates directly and securely into various power infrastructures thanks to its standard port structure that requires no custom cable sets and its wide 9V-32V input voltage support. Equipped with an onboard 256GB NVMe SSD, WiFi/Bluetooth connectivity, and dual-channel MIPI-CSI camera interfaces, Novabox supports industrial communication protocols such as RS232 and CAN-BUS. With project-specific port configuration and customized BSP support, the existing hardware is ready to be optimized according to your specific application requirements.

Spec sheet

Please contact us for customization requests.

Should you require a price quotation, please do not hesitate to contact us. For more detailed information about the technical documentation and user manual of the product, please contact us.
