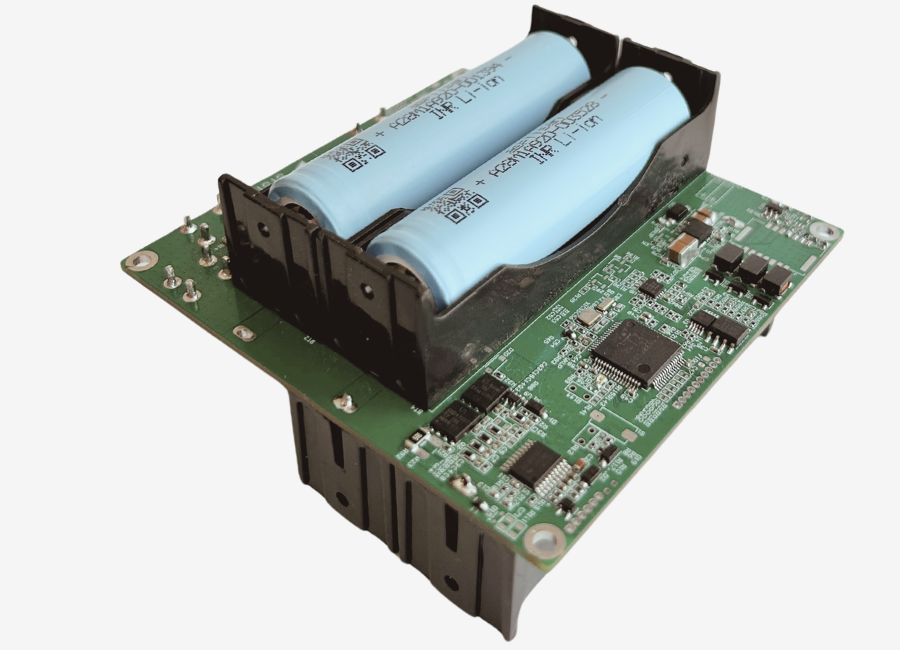

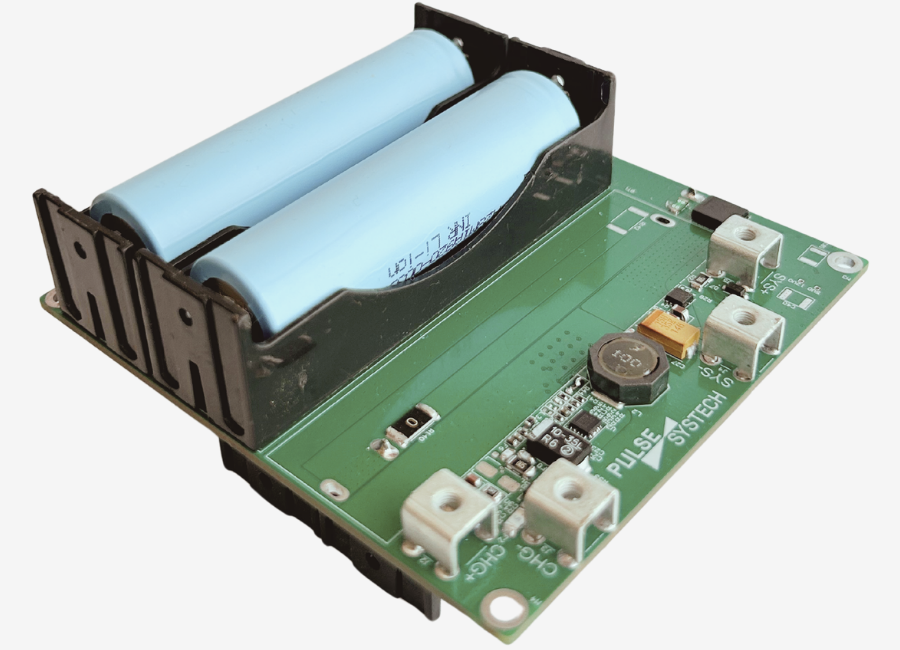

Haven – Li-Ion / LiFEO4 Smart Battery Package With UPS System

Estimated Shipping: 3-4 Day

Uninterrupted Power and Intelligent Charging

Easily rechargeable with a standard laptop adapter, the Haven platform ensures uninterrupted operation during charging and automatically switches to battery power upon disconnection, guaranteeing total system continuity.

Advanced Battery Monitoring and Health Management

Equipped with precise measurement mechanisms to monitor cell balance and capacity, the system utilizes advanced fault detection algorithms to protect against over-discharge, short circuits, and high temperatures, thereby optimizing energy use and extending battery lifespan.

Integrated Status Telemetry and Connectivity

Transmits all real-time battery status data via RS485 or CAN-BUS interfaces; these configurable communication links allow for centralized monitoring and seamless integration into the user’s power management architecture.

Mobile Portability for NVIDIA Jetson

Enables you to transform NVIDIA Jetson modules into fully mobile and portable systems; providing an uninterrupted power infrastructure for field operations and mobile robotic applications.

Charge Voltage	15.5V-28V (3S Minimum 15.5V, 4S Minimum 19.5V, 5S Minimum 24V)
Reverse Voltage Protection	Reverse Voltage Protection at Charging Adapter Input
Output Voltage	9V-27.5V
Battery Voltage	9V-21V
Series Connected Battery	3S/4S/5S/5S Series Li-Ion Battery Connection
Maximum Charge Current	Continuous Current 1A
Power Line Control	Automatic Switching Between Charging Voltage and Battery Voltage
Battery Pack	18650 / 21700
Battery Output Current	10A
Output Current with Charging Adapter	2.5A
System Protection Structures	Battery Cell Low-High Voltage Protection, Battery Short Circuit Protection, Battery Over Current Protection, Circuit Charging Voltage Low-High Voltage Protection
Observable Parameters	Battery Cell Voltage Reading, Battery Charge and Discharge Current Reading, Output Voltage and Current Reading, Circuit Charge Voltage and Current Reading, On-Circuit Charge Structure Temperature Reading, Charge and Discharge On-Off Structure Temperature Reading
Battery Capacity Measurement	Battery Load Counting (Coulomb Counting)
Battery Balancing	Passive Balancing
Circuit External Regulator	12V/1A – 5V/1A
Circuit Communication	RS485 Full Duplex, CAN-BUS
Circuit Operating Temperature	-25 °C…60 °C

More Information

Our Smart Battery Management System can be easily charged using your standard laptop power adapter. During the charging process, your system will automatically continue to receive uninterrupted power from the charger. When you disconnect your charger, your system will automatically continue to be powered by the battery. Your battery pack is constantly monitored with sensitive measurement mechanisms, analysing the remaining usable capacity and the balance between the cells to optimise the energy life of the system. Your battery pack strives to maintain the highest level of system integrity and operational continuity by using advanced fault detection algorithms to protect against risks such as high temperature, over discharge, short circuit and low voltage.

SPEC SHEET

USE CASES

user manuel

Please contact us for customization requests.

Should you require a price quotation, please do not hesitate to contact us. For more detailed information about the technical documentation and user manual of the product, please contact us.
