HAVENBRICK-14S – UBEC DC-DC Converter (Connectorless Cables)

₺2.943 ₺2.343

Include VAT

Sale

Estimated Shipping: 4-5 Day

Avaliable Stock : 2

Get a Quote for Havenbrick-14S-MON Telemetry Module for Pixhawk

Wide Input Voltage Range

Supports a broad voltage spectrum from 6.0V to 60.0V, ensuring seamless compatibility with 2S to 14S Li-Po, Li-Ion, and LiFePO4 batteries for maximum versatility.

Stable Output Current

Provides highly consistent 10A continuous output with 20A peak capability, ensuring voltage stability and uninterrupted power for high-torque servos during sudden load spikes.

Compact and Adjustable

Its compact 49.9 x 44.8 x 30.0 mm design ensures easy integration in tight spaces, while the integrated slide switch allows for quick and effortless adjustment of output voltage levels.

Quantity

Should you require a price quotation for the Havenbrick-14S-MON Telemetry Module, or wish to discuss bulk order discounts, please do not hesitate to contact us. For technical documentation and the user manual, please reach out to our team.

Request Quate

First Name

Phone

Message

I have read and agree to the Privacy Policy.

The form has been successfully submitted!

An error occurred while submitting the form. Please validate all form fields again.

Operating Voltage	9V-60V
Output Voltage	5.0V/6.0V/7.4V/8.4V
Output Current	10A Continuous 20A Peak
Efficiency	%92
Power Switch	Slide Panel Mount Switch
Adjustable Voltage	Slide Switch on The Box
Output Monitoring	Power Status LED
Protections	Over-Current, Short- Circuit, Over-Temperature, Undervoltage
Operating Temperature	-40 °C…85 °C
Dimension	49.9 x 44.8 x 30.0 mm
Weight	111,55 gr (including weight of wire)

More Information

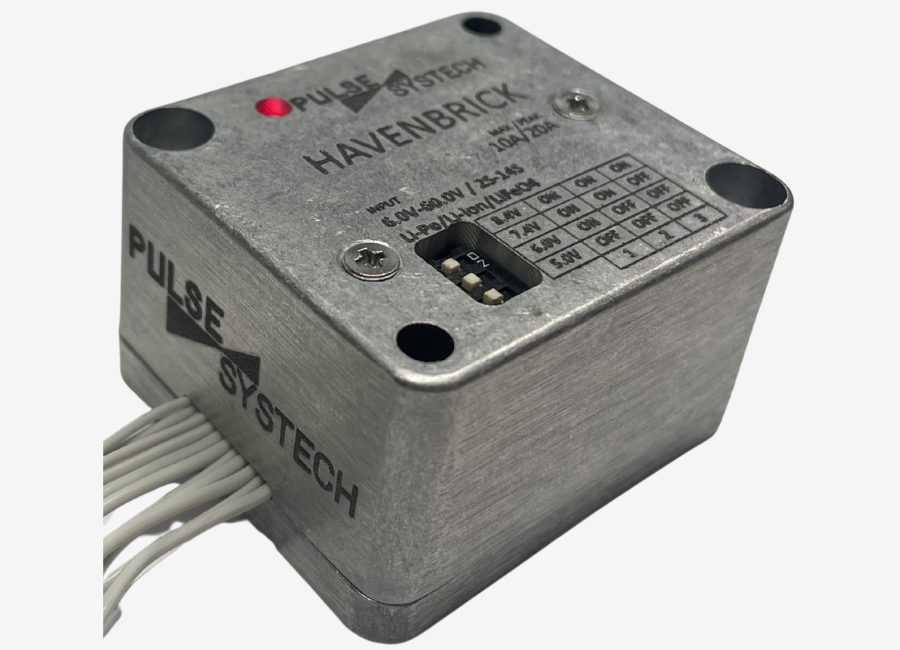

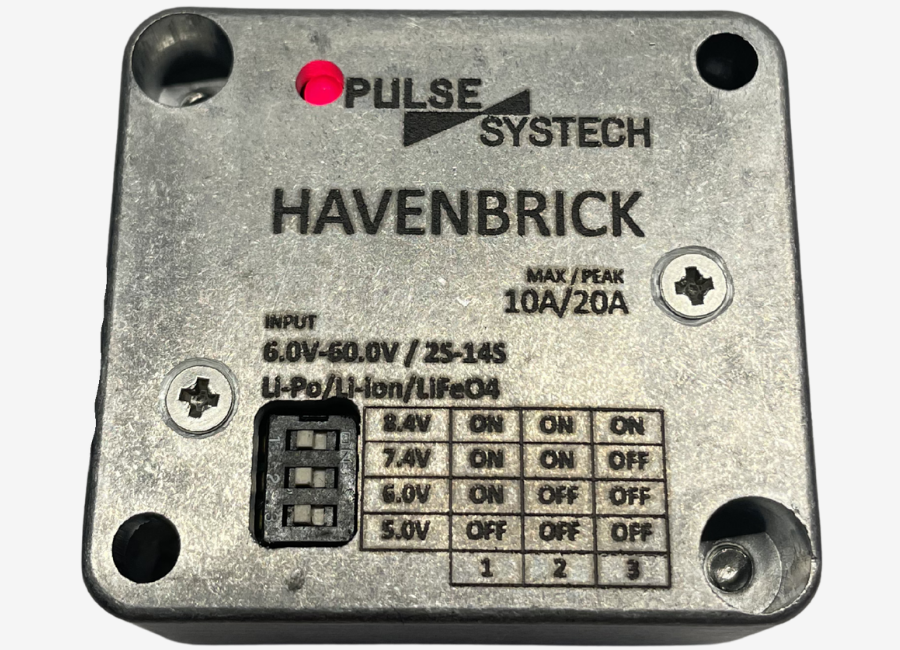

Havenbrick is a high-efficiency switching-mode DC-DC power unit designed to step down voltage from batteries or DC power sources to precise levels. Featuring a convenient slide switch, the output voltage can be adjusted to 5V, 6V, 7.4V, or 8.4V to suit various application requirements.
The robust power architecture is engineered to reliably supply electronic loads with 10A continuous and 20A peak current. During normal operation, a dedicated red LED remains illuminated, providing a clear visual indicator of the output status. The integrated power switch allows users to toggle the system on or off without the need to disconnect the load.
With an expansive input voltage range of 6.0V to 60.0V, Havenbrick is particularly well-suited for high-demand platforms such as multi-servo helicopters, VTOLs, drones, and fixed-wing aircraft. It ensures the safe and stable operation of critical systems in autonomous vehicles, including receivers, autopilot controllers, and onboard image processing units.

Spec sheet

3D MOdel

Please contact us for customization requests.
