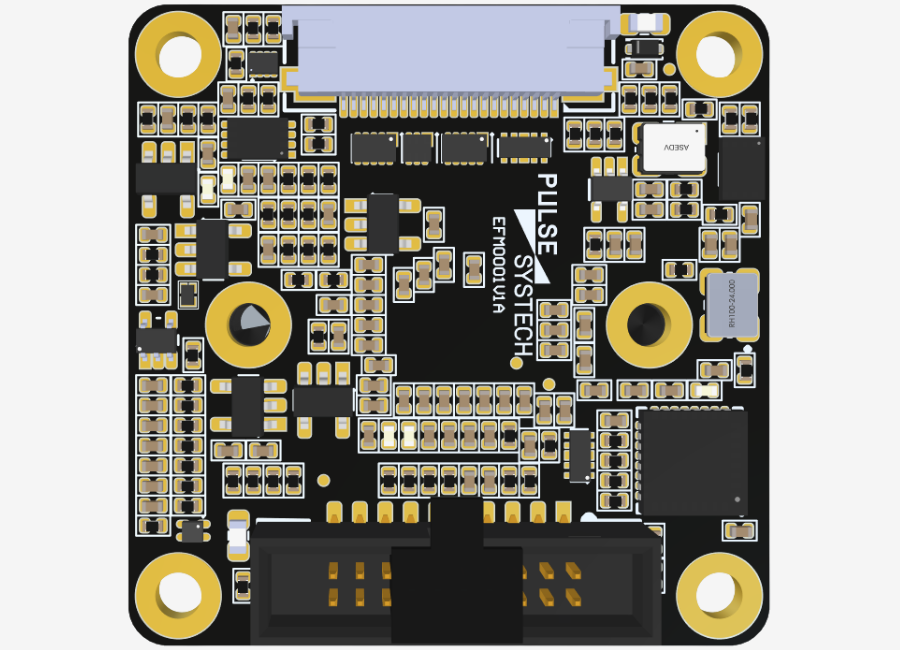

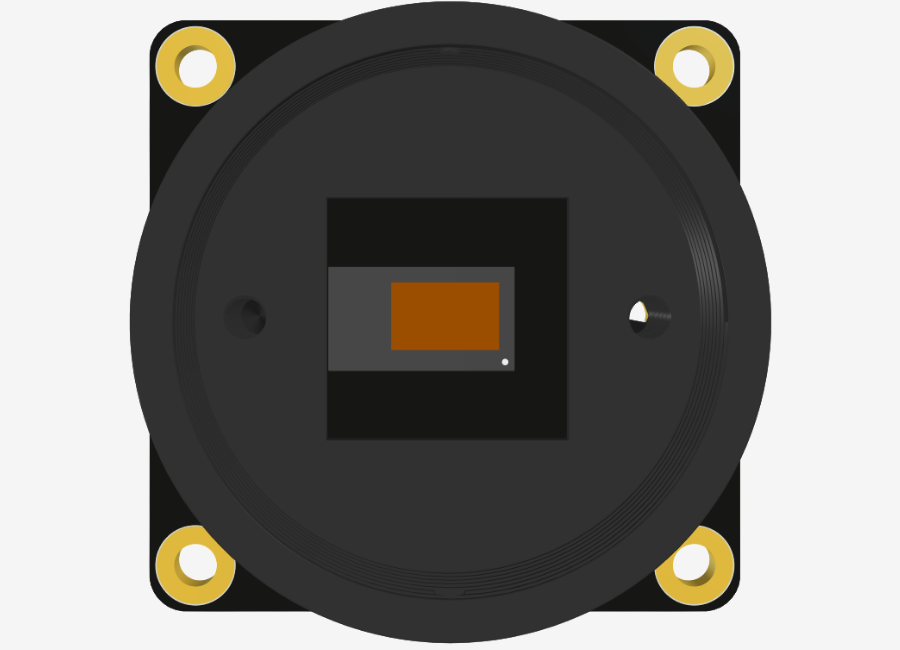

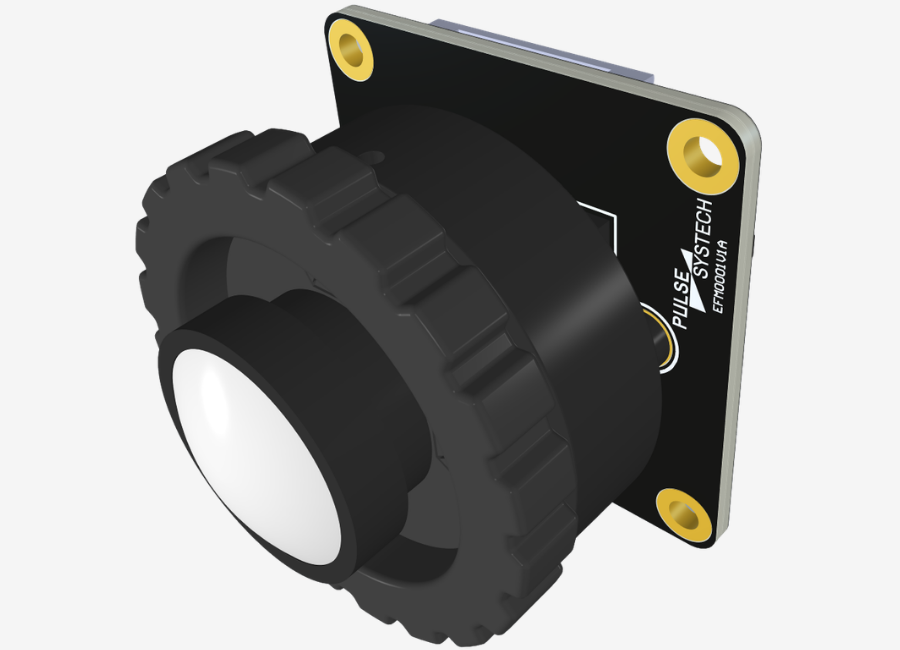

EFM-AR0234-MIPI – AR0234 2.3MP Color Global Shutter MIPI-CSI2 Camera

PREVIEW

NVIDIA® Jetson™ Native Integration

Provides direct driver support and effortless BSP setup for both NVIDIA Jetson ecosystems, enabling seamless, zero-friction integration across standard Linux platforms.

Hardware Trigger & Strobe Flash Synchronization

Dedicated hardware Trigger and Flash outputs ensure microsecond-level camera synchronization for multi-view setups and external lighting pulses, guaranteeing precise timing in dynamic capture environments.

Distortion-Free Global Shutter Performance

Powered by Onsemi’s AR0234 Global Shutter sensor to eliminate motion artifacts completely, rendering sharp, uncompressed RAW frames for fast-moving targets in industrial automation and AI vision systems.

Sensor	1/2.6-inch AR0234 Onsemi
Maximum Resolution	1920 (H) x 1200 (V) = 2.3 MP
Color	RGB
Pixel Rate	3.0 um x 3.0 um
Resolution / Frame Rate (NVIDIA Orin Nano / NX)	1920×1200 30 fps 1920×1080 30 fps 1280×700 60 fps
Interface	MIPI-CSI2 2 Lane 22 pin 0.5mm FPC Connector
Output Format	RAW10
Lens Mount	C/CS Mount (Optional)
Shutter Type	Global Shutter
Operating Temperature	-40 °C…85 °C
Dimensions	32.0 mm x 32 mm x 19.40 mm

More Information

Engineered for high-speed industrial vision and edge AI applications, the EFM-AR0234-MIPI camera module features Onsemi’s 1/2.6-inch 2.3 MP AR0234 Global Shutter sensor. Delivering crystal-clear RAW10 video capture at up to 60 fps without rolling shutter distortion, it seamlessly integrates with NVIDIA® Jetson Orin™ Nano and Orin™ NX platforms via a MIPI-CSI2 2-Lane interface. With its optional C/CS-Mount lens structure and rugged design rated for extreme -40°C to +85°C industrial environments, the EFM-AR0234-MIPI provides plug-and-play reliability for dynamic capture, factory automation, and robotic vision.

Please contact us for customization requests.

Should you require a price quotation, please do not hesitate to contact us. For more detailed information about the technical documentation and user manual of the product, please contact us.
